- Pipe: from diameter 60 to 133 mm (ST37, GV)
- Shaft: from 20 to 40 mm diameter (ST37, CK45, MO40, 304)
- Bearing: 6204, 6205, 6206, 6305, 6308
- Shaft type: threaded, flat screw
- Paint: electrostatic and oil spray
- Exclusive P6 seal and metal cap

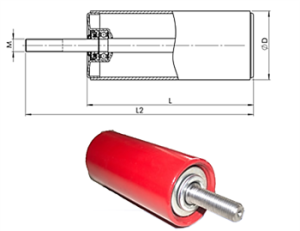

Directional or guide rolls
Short description:
The directional roller is designed to properly guide the conveyor belt at the top, preventing it from moving sideways. They are used in the central station and curved sections of the conveyor.
